Command Service

---

Command Service is a combination of 3 services:

Customer Service is a service that manipulate database and can be accessed by Gateway via REST API. This service stores customer information such as phone number, customer information, activities on the system.

User Service is one of a service that manipulate database and can be accessed by Gateway via REST API. This service stores user data, role data, sip account

Third party service is a service that manages the integration information of external systems and provides these integration information for the integration service to execute

It only communicates with the access-service. A username and a password, exemplifying Basic Access Authentication, must be validated.

I. Functionality

• Create, store, and manipulate customer-service database
  • Create, store, and manipulate Activity: calllog, send sms,...
  • Create, store, and manipulate ContactGroup: Contact information in a group
  • Create, store, and manipulate Contact: Information of contact
• Create, store, and manipulate user-service database
  • Agent: this is where the user's information is stored in a callcenter
  • Role: By default, there are two roles: admin and agent. In addition, you can customize the role yourself
  • SipAccount: Save information about sip account from provider
• Create, store, and manipulate third-party-service database
  • Create, store, and manipulate Integration Template
  • Create, store, and manipulate Integration Endpoint
  • Create, store, and manipulate Integrator
• Authorize via a username and a password, exemplifying Basic Access Authentication

II. Packages

1. Dependencies

• Express - Node.js web application framework: Express
• MongoDB - Node.js Driver: MongoDB
• Dotenv - Storing configuration: Dotenv
• Body-parser - Node.js body parsing middleware: Body-parser
• Winston - A multi-transport async logging library for node.js: Winston
• Winston-daily-rotate-file - A transport for winston which logs to a rotating file each day: Winston-daily-rotate-file
• Morgan - HTTP request logger middleware for node.js: Morgan
• Bluebird - A full featured promise library with unmatched performance: Bluebird

2. Dev Dependencies

• Mocha - The fun, simple, flexible JavaScript test framework: Mocha
• Chai - Assertion library for node: Chai
• Chai as Promised - Chai assertions for promises: Chai Promised
• Chai HTTP - HTTP Response assertions for the Chai Assertion Library: Chai HTTP
• Istanbul - A JavaScript test coverage tool: Istanbul
• Nyc - Istanbul's state of the art command line interface: Nyc
• ESLint - The pluggable linting utility for JavaScript and JSX: EsLint

III. Database

1. ERD

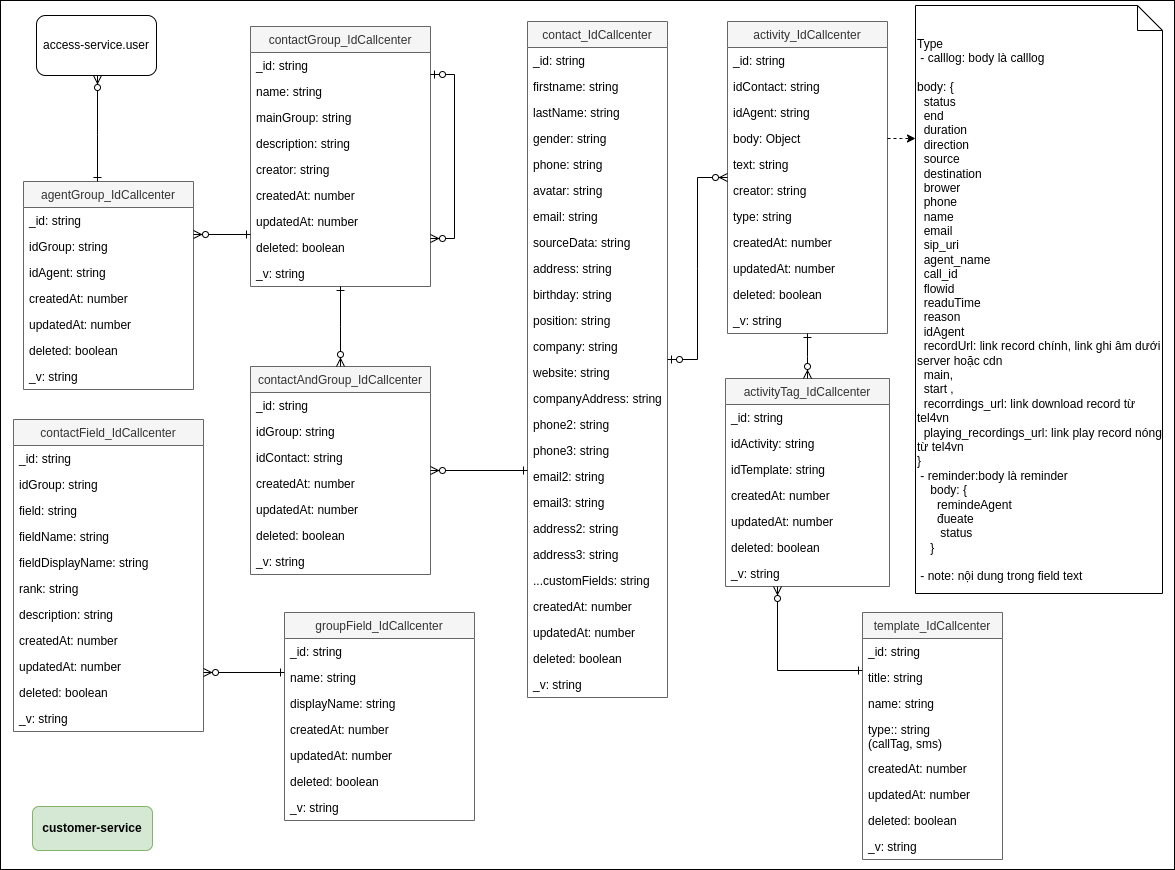

• ERD customer-service

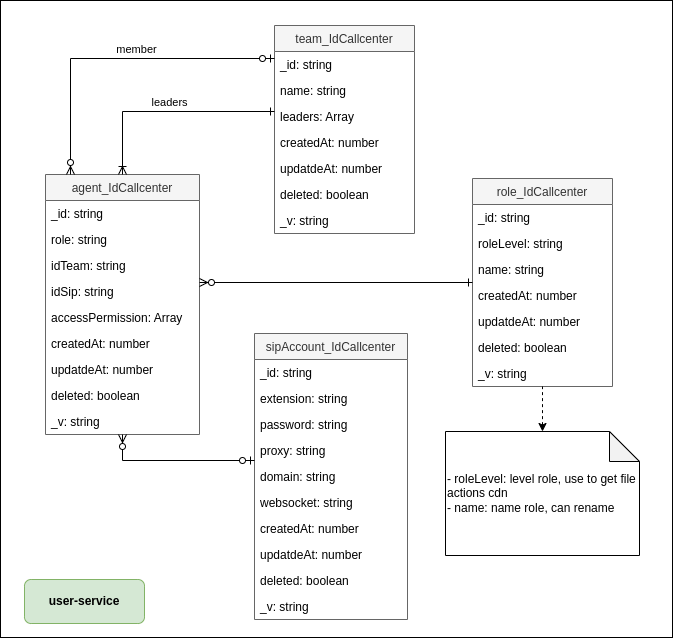

• ERD user-service

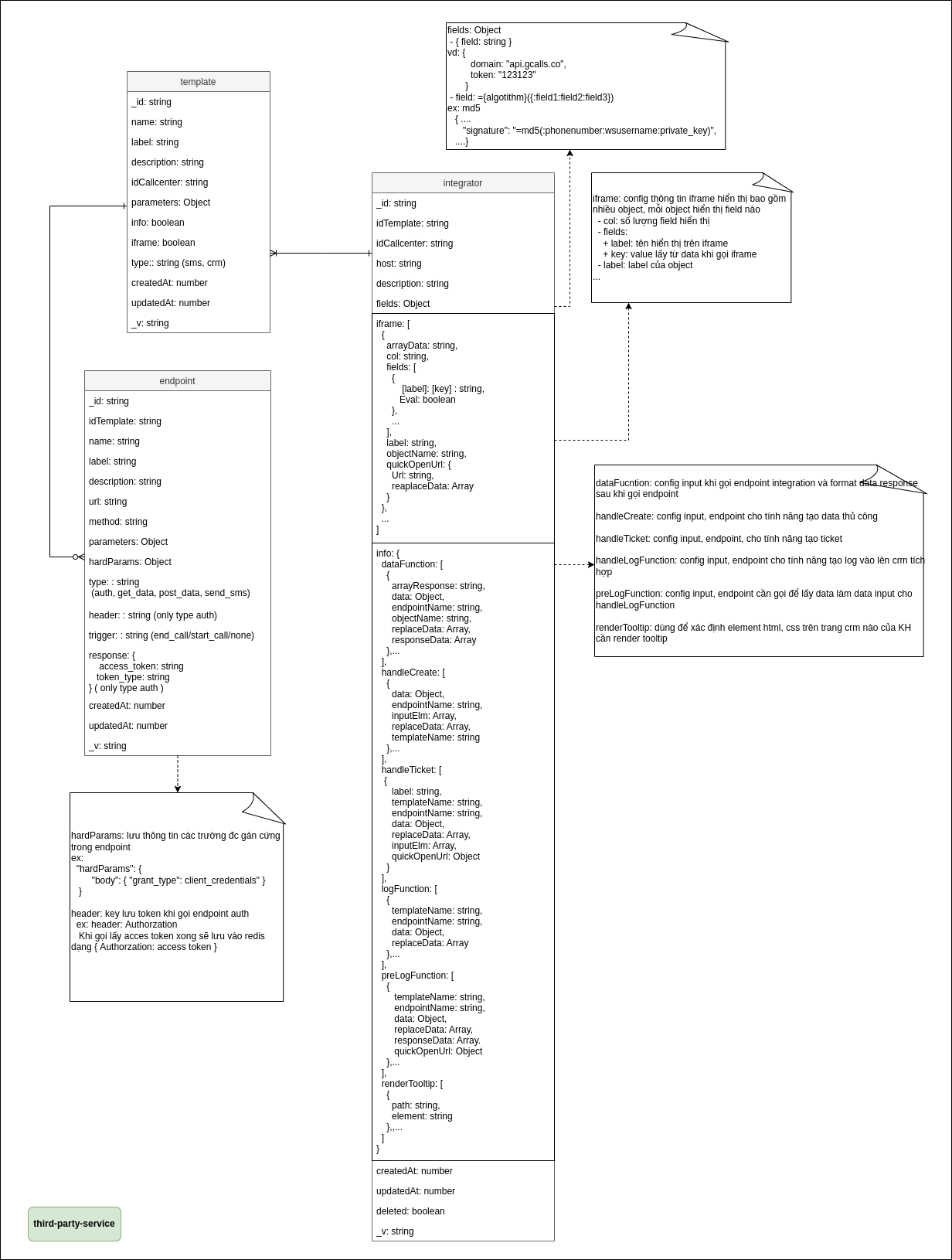

• ERD third-party-service

2. Database schema

Activity

Activity of an agent goes along with a contact. Indeed, every call center has a distinct collection to store their call logs. The collection names follow the format activity_idCallcenter

Field	Type	Description
_id	string	Unique identity string
creator	string	_id of the agent creating the activity
idContact	string	_id of the contact involved
text	string	Description of the activity
type	string	Three accepted values of activity category are note, calllog, and reminder
body	object	If type is calllog, body includes idCalllog, status, duration, direction, source, destination, start, and end. If type is reminder, body includes remindedAgent, duedate, and status
body.status	string	If type is calllog, five accepted values are success, missed, rejected, busy, and connected. If type is reminder, two accepted values are checked and unchecked
body.idCalllog	string	_id of the call
body.duration	number	Length of call, measured in seconds
body.direction	string	Direction of the call, two accepted values are incoming and outgoing
body.source	string	Caller of the call
body.destination	string	Recipient of the call
body.start	number	Timestamp of the call initiation, in number of milliseconds since Unix epoch
body.end	number	Timestamp of the call end, in number of milliseconds since Unix epoch
body.remindedAgent	string	_id of agent reminded
body.duedate	number	Timestamp of the deadline on schedule, in number of milliseconds since Unix epoch
createdAt	int64	Timestamp of the document creation, in number of milliseconds since Unix epoch
updatedAt	int64	Timestamp of the last update, in number of milliseconds since Unix epoch
deleted	boolean	Status of visibility

ContactGroup

ContactGroup provides information about a group of contacts chosen by an agent individually in their view. Indeed, every call center has a distinct collection to store their groups. The collection names follow the format contactGroup_idCallcenter

Field	Type	Description
_id	string	Unique identity string
name	string	Name of the group
description	string	Description of the group
creator	string	_id of the agent creating the group
contactList	array	Each item is the _id of agent in the group
createdAt	int64	Timestamp of the document creation, in number of milliseconds since Unix epoch
updatedAt	int64	Timestamp of the last update, in number of milliseconds since Unix epoch
deleted	boolean	Status of visibility

Contact

Contact provides information of a contact. Indeed, every call center has a distinct collection to store their contacts. The collection names follow the format contact_idCallcenter

Field	Type	Description
_id	string	Unique identity string
firstName	string	First name of the contact
lastName	string	Last name of the contact
gender	string	Gender of the contact
email	string	Email of the contact
phone	string	Phone number of the contact
avatar	string	Avatar of the contact
createdAt	int64	Timestamp of the document creation, in number of milliseconds since Unix epoch
updatedAt	int64	Timestamp of the last update, in number of milliseconds since Unix epoch
deleted	boolean	Status of visibility

Agent

Agent is a person who works for a call center. Indeed, every call center has a distinct collection to store their agents. The table name follows the format agent_idCallcenter

Field	Type	Description
_id	string	Unique identity string
role	string	Role assigned to the agent, two accepted values are admin and agent
idSip	string	_id of SIP account assigned to the agent
createdAt	int64	Timestamp of the document creation, in number of milliseconds since Unix epoch
updatedAt	int64	Timestamp of the last update, in number of milliseconds since Unix epoch
deleted	boolean	Status of visibility

Role

Role is assigned to each agent to determine their authorization. Indeed, every call center has a distinct table to store their roles. The table name follows the format role_idCallcenter

Field	Type	Description
_id	string	Unique identity string
name	string	Name of the role, two accepted values are admin and agent
createdAt	int64	Timestamp of the document creation, in number of milliseconds since Unix epoch
updatedAt	int64	Timestamp of the last update, in number of milliseconds since Unix epoch
deleted	boolean	Status of visibility

SipAccount

A SipAccount provides authentication credentials to log in a SIP account. Indeed, every call center has a distinct table to store their SIP accounts. The table name follows the format sipAccount_idCallcenter

Field	Type	Description
_id	string	Unique identity string, in this case, the hotline number
domain	string	Domain of the SIP account
extension	string	Number of extension in SIP URI
password	string	Password to get access to call connection
proxy	string	Proxy the of SIP account
createdAt	int64	Timestamp of the document creation, in number of milliseconds since Unix epoch
updatedAt	int64	Timestamp of the last update, in number of milliseconds since Unix epoch
deleted	boolean	Status of visibility

ClickToCall

ClickToCall includes information about customized Gcall button of call centers. Each call center only has one click-to-call button

Field	Type	Description
_id	string	Unique identity string
idCallcenter	string	_id of the call center
header	string	Header of the button
content	string	Body description of the button
color	string	Color of the button
position	string	Position of the button, five accepted values are bottom-left, bottom-right, bottom-center, left-center, and right-center
delay	number	Number of seconds between loading the button and releasing it
activated	boolean	Status of the button
deleted	boolean	Removal status of the record
createdAt	int64	Timestamp of the document creation, in number of milliseconds since Unix epoch
updatedAt	int64	Timestamp of the last update, in number of milliseconds since Unix epoch
deleted	boolean	Status of visibility

SipProvider

SipProvider provides information about providers that supply SIP accounts

Field	Type	Description
_id	string	Unique identity string
name	string	Name of the provider
phone	string	Phone number of the provider
phoneList	array	List of phone numbers provided, each is a string
tollCost	string	Toll cost of using the provider's service
firm	string	Firm name of the provider
innerCost	string	Inner cost of using the provider's service
outerCost	string	Outer cost of using the provider's service
serviceCost	string	Installmen cost of using the provider's service
deleted	boolean	Removal status of the record
createdAt	int64	Timestamp of the document creation, in number of milliseconds since Unix epoch
updatedAt	int64	Timestamp of the last update, in number of milliseconds since Unix epoch
deleted	boolean	Status of visibility

III. Source tree

https://gitlab.com/gcalls/publics/gcallsback/-/tree/Test/commandService

IV. Installation

---

• Clone project:

git clone https://gitlab.com/gcalls/publics/gcallsback

• Change dir into commandService folder

cd commandService

• Install packages:

npm install

• Start service:

  • run in development

    npm run dev

  • run in production

    npm install -g pm2
    npm start

• Test:

  npm run test

V. Endpoint

---

Please visit API documentation for more details
